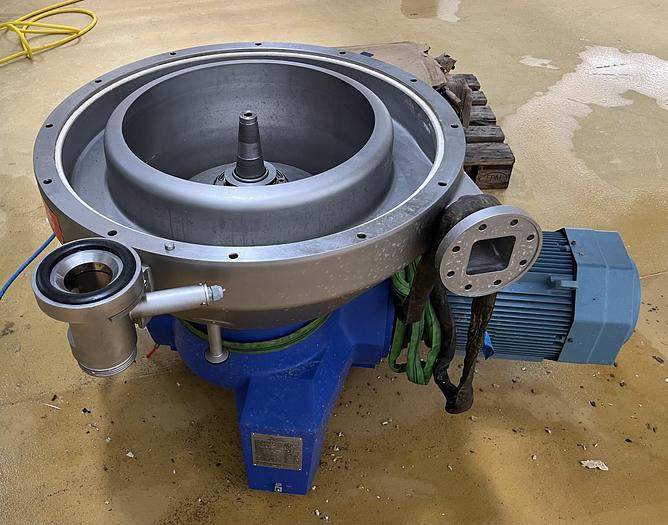

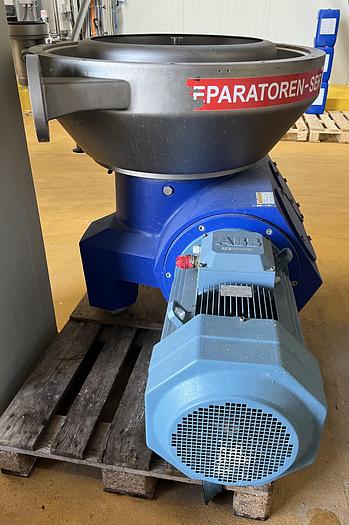

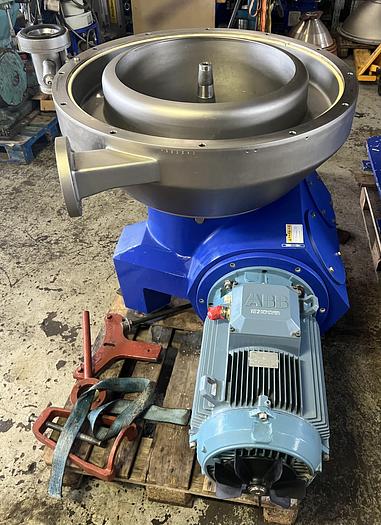

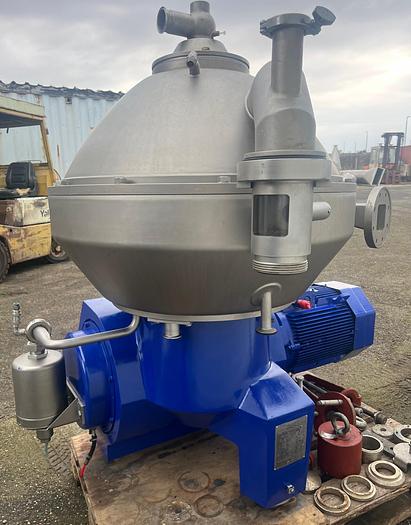

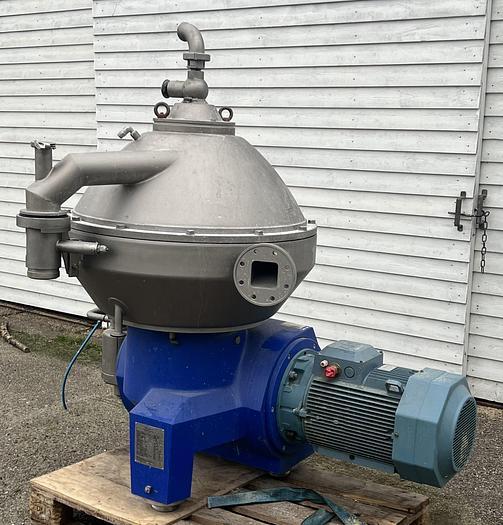

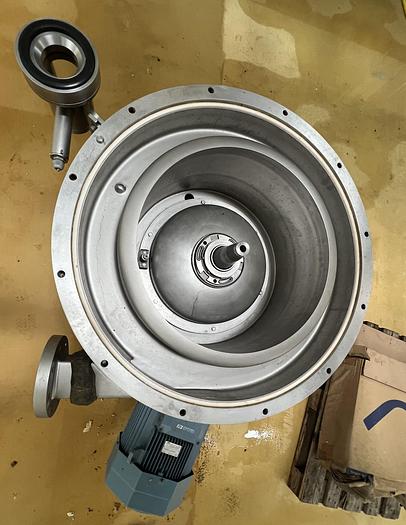

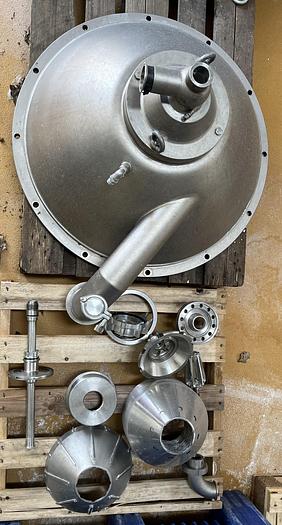

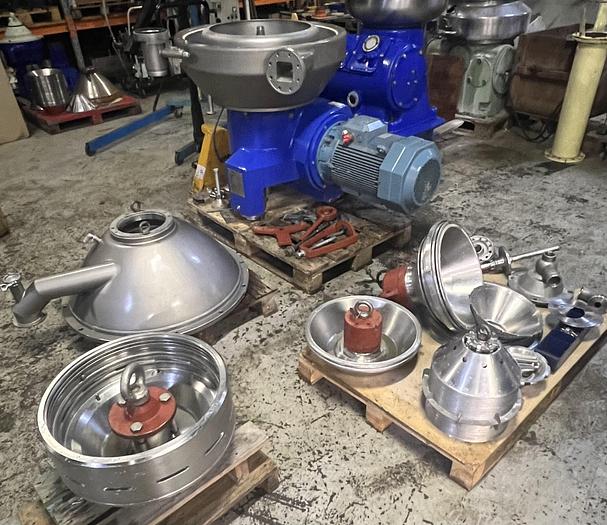

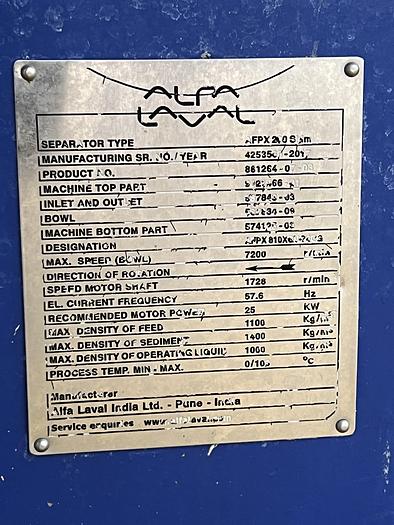

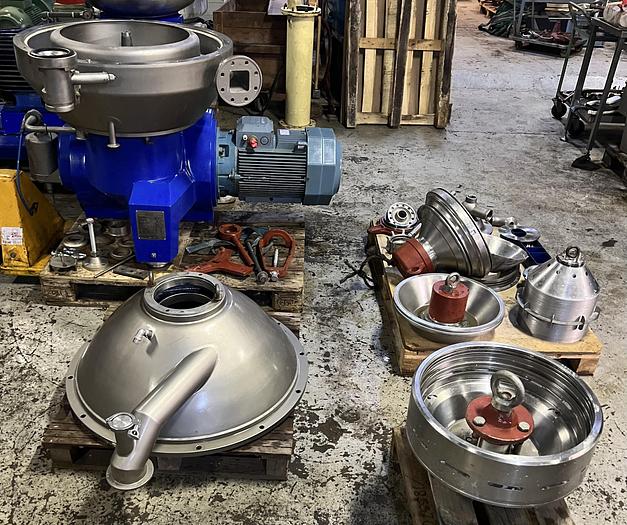

Alfa Laval AFPX 810XGD-74 concentrator

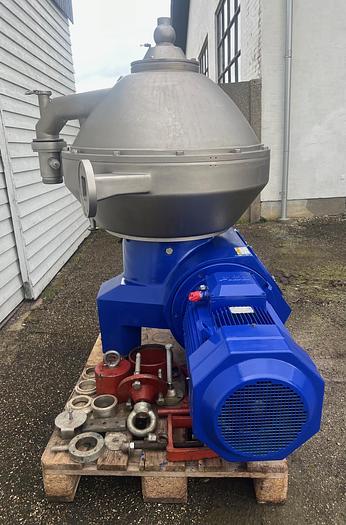

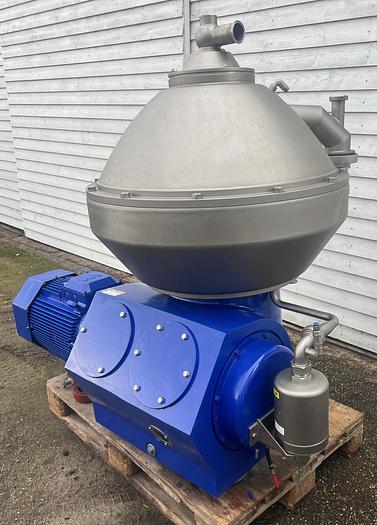

One AS-NEW Alfa Laval separator, type AFPX 810XGD-74 concentrator. Max. hydraulic capacity: 17.000 liter/hour. Feed temperature, min./max: 0/100 deg. C. Discharge volume, min./max: 6/13 liters, Discharge interval, min./max: 1/60 minutes. Foundation frame and cyclone is not included - but can be offered as optional.

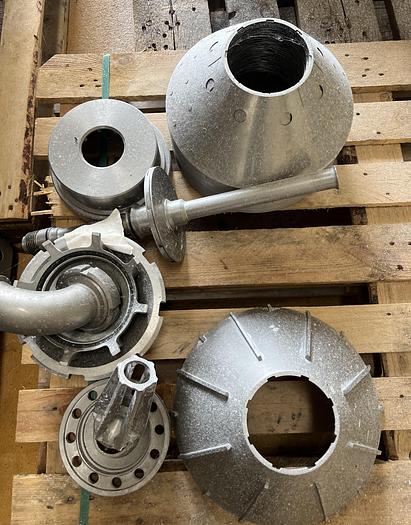

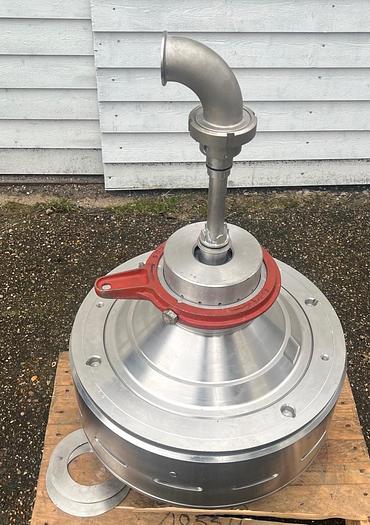

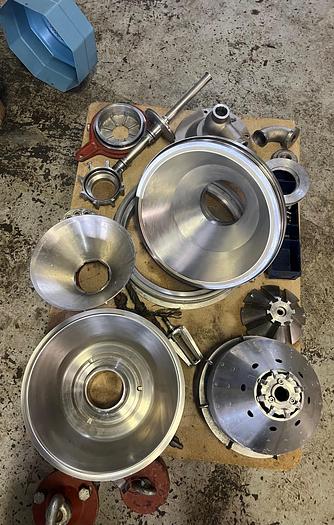

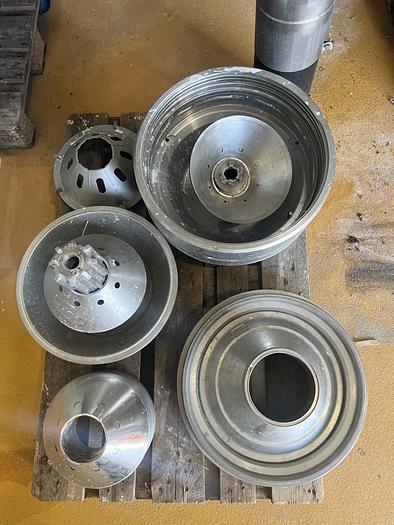

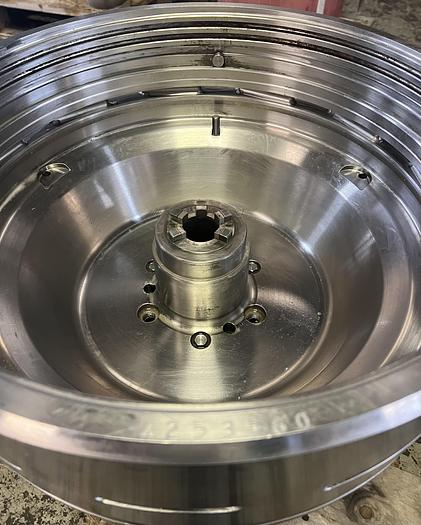

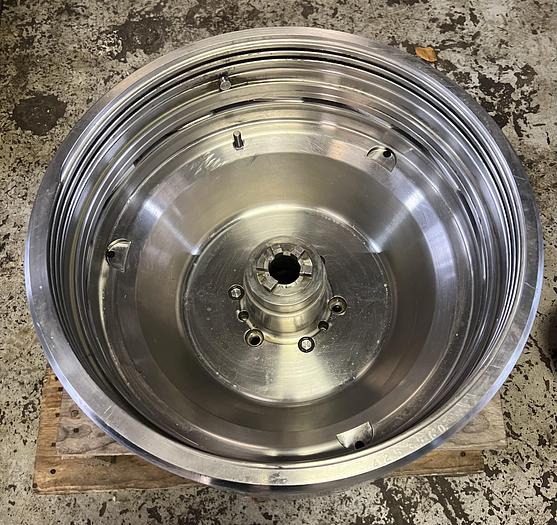

Disc distance: 0,5 mm. Bowl with wear protection - wear liners in the wall pillars - and wear liner in the sliding bowl bottom.

Max bowl speed: 7.200 rpm. Motor: 22 kW, 50 Hz, 400 V, 43.50 Amp, 1484 rpm.
