ANDRITZ D4 LLC 30 B HP decanter centrifuge

Decanter for sludge dewatering-, bio-ethanol-, food- and slop oil applications. This decanter is part of the D-series of decanter centrifuges from ANDRITZ SEPARATION, which are designed for high performance and reliability. Reported dry solids achivements up to 35 %.

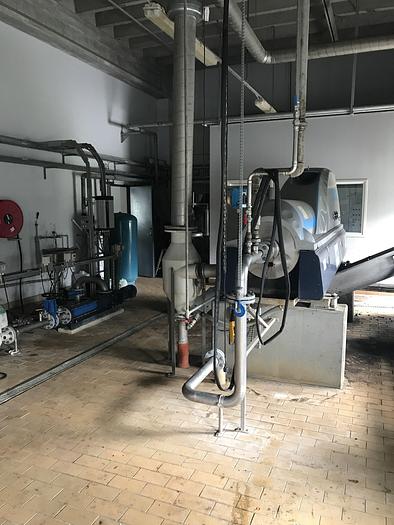

This ANDRITZ decanter unit has a bowl and conveyor in acidproff stainless steel with tiles on the conveyor flights. It has a motor driven back drive system to control the relative speed. The operation is controlled by an electrical panel that was installed with the machine.

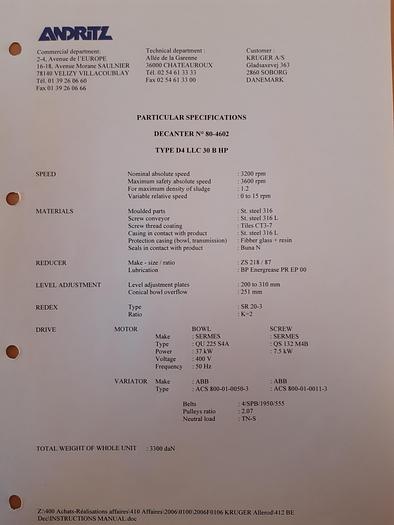

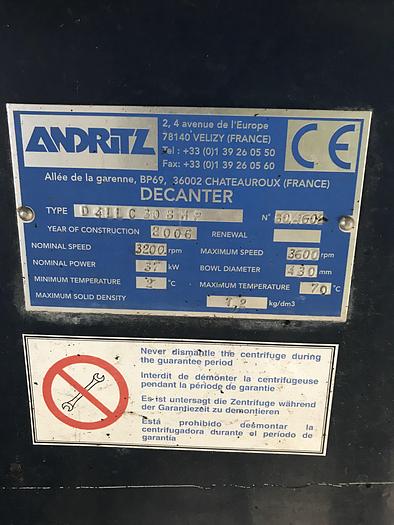

Bowl diameter: 430 mm

Nominal absolute speed: 3.200 rpm. Maximum sludge density: 1,2. Variable relative speed: 0-15 rpm.

Electric data: 37 kW, 380 V, 50 Hz and 3 phase power supply. Back drive motor: 7,5 kW
