Alfa-Laval NX438S-31G
Sold
Alfa-Laval NX438S-31G
Location:Hirtshals, Denmark
Description

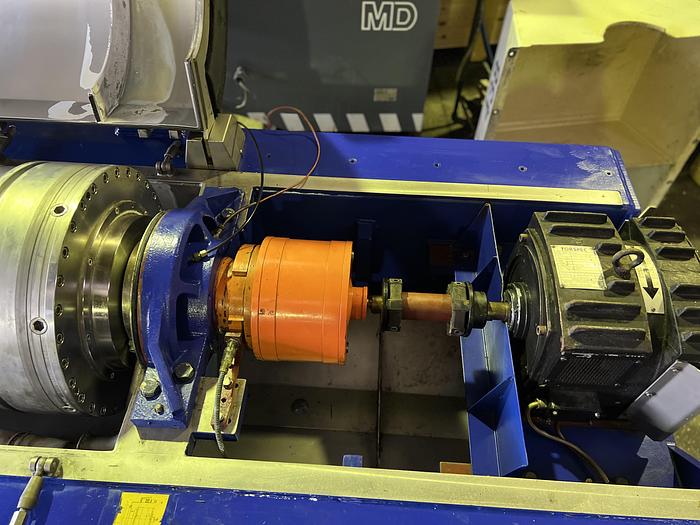

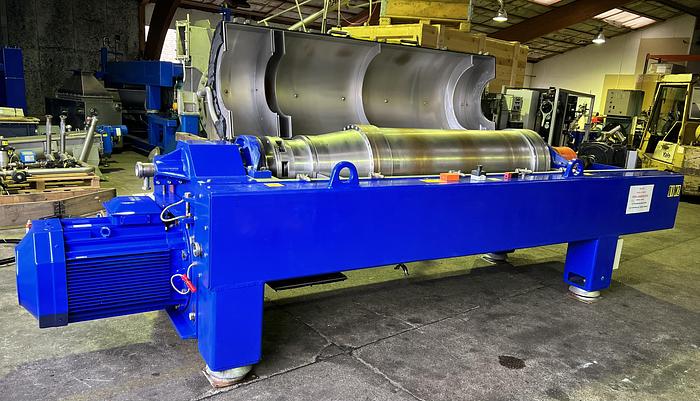

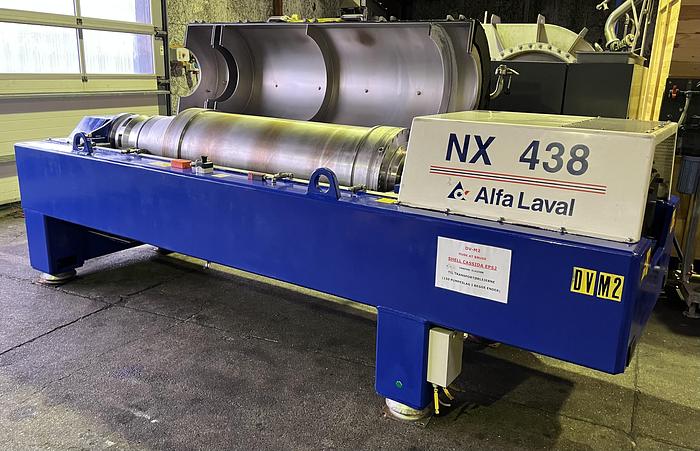

One complete Alfa Laval decanter unit, type NX 438S-31G – including ancillary CIP equipment and original Alfa Laval ABC control panel for the unit. Decanter for food and feed applications. The unit has CIP cleaning system mounted on. Operating G-force: 3.193, max bowl speed: 3650 rpm. Gear: DD 3,5 kN, Drum diameter: 480/263 mm, Beach angle: 10°, max sludge density: 1,2 kg/dm3, max feed temperature: 110°C, 55 kW ABB motor, 3 phase, 50 Hz, M2AA 250 SMA4
Specifications
| Manufacturer | Alfa-Laval |
| Model | NX 438S-31G |
| Year | 2001 |
| Condition | Used |
| Operating G-force | 3.193, max bowl speed: 3650 rpm |
| Gear | DD 3,5 kN |
| Drum diameter | 480/263 mm |
| Beach angle | 10 deg. |
| Max sludge density | 1,2 kg/dm3 |
