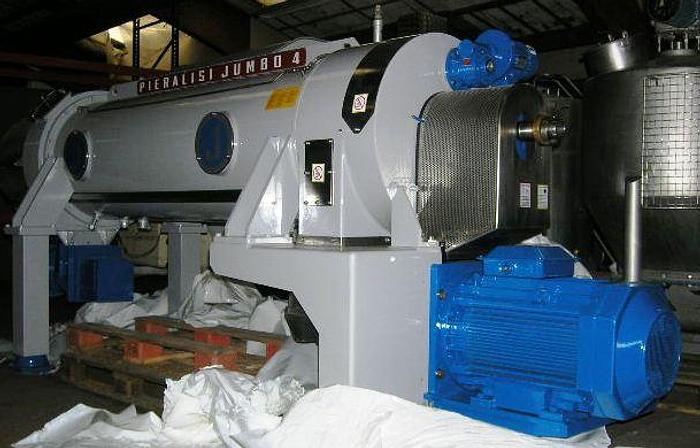

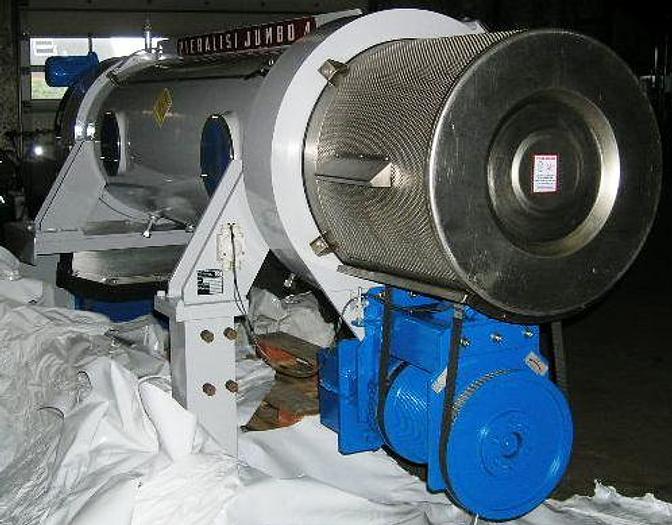

PIERALISI decanter, type JUMBO 4

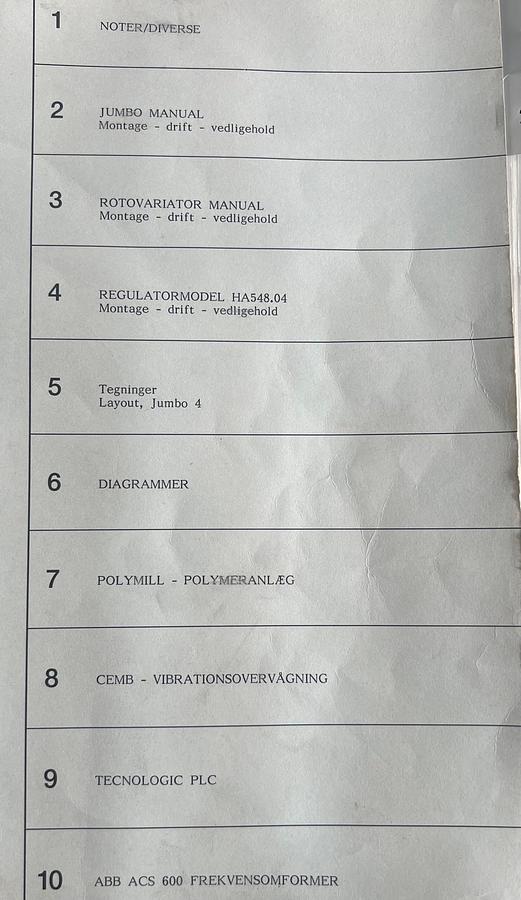

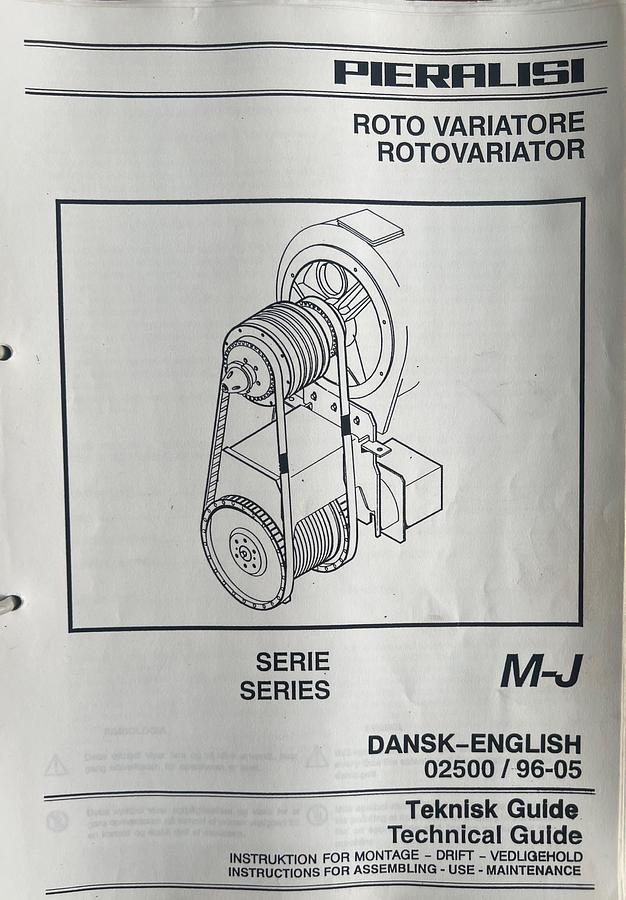

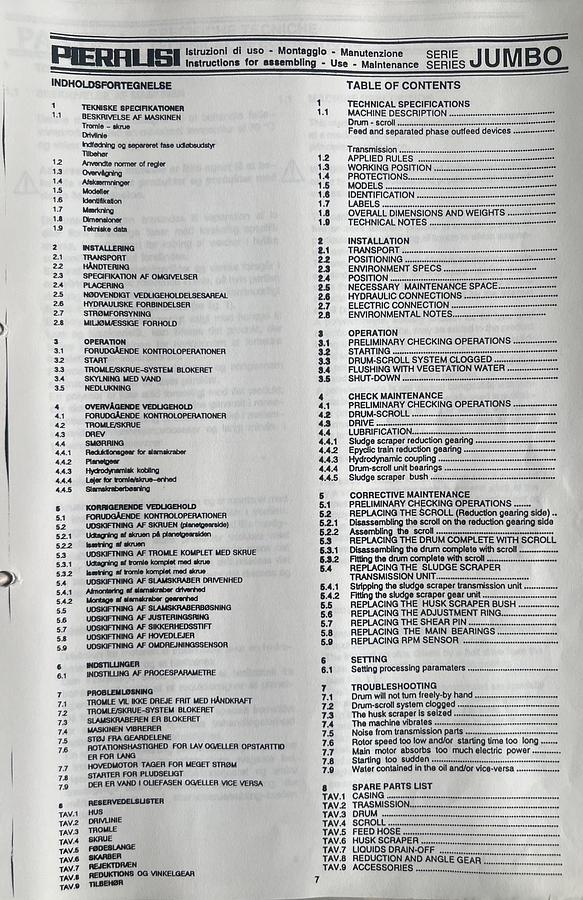

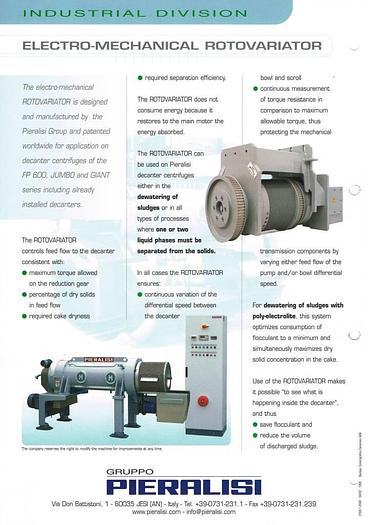

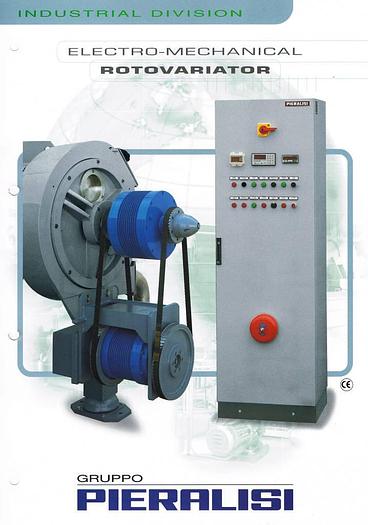

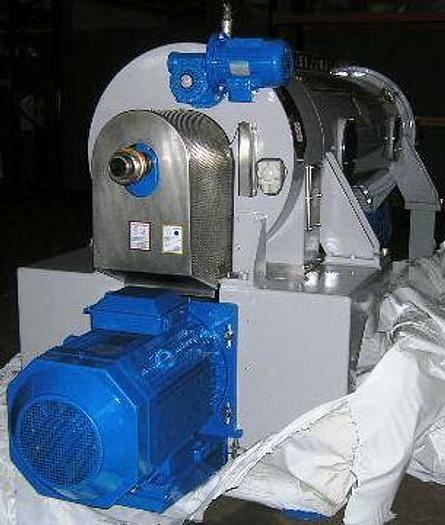

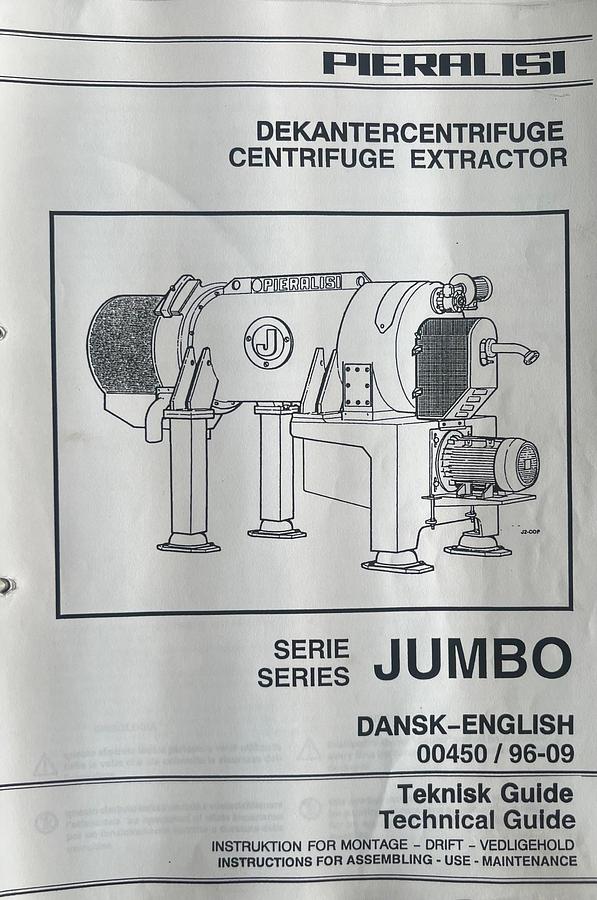

Sludge dewatering decanter, with automatic back drive system, electric panel and decanter manual. Main drive: ABB motor: 45 kW, 50 Hz, rpm 3350. Hydraulic capacity; approx. 55 m3/hour Estimated sludge capacity: 800 kg dry solids/hour. Max sludge density: 1,4 kg/dm3. Completely decanter-factory-work-shop reconditioned.

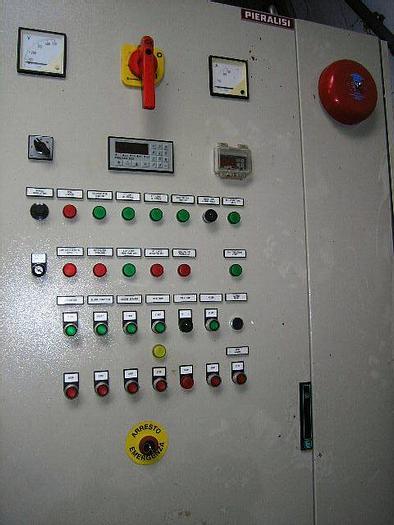

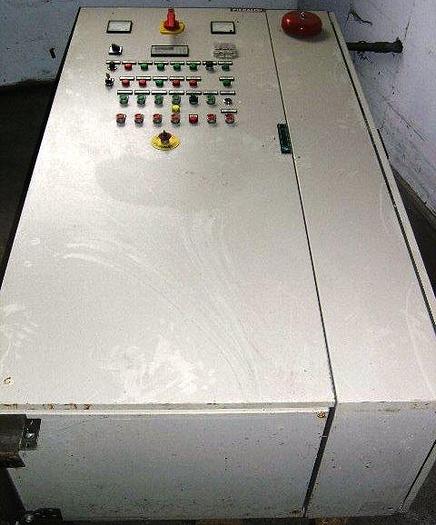

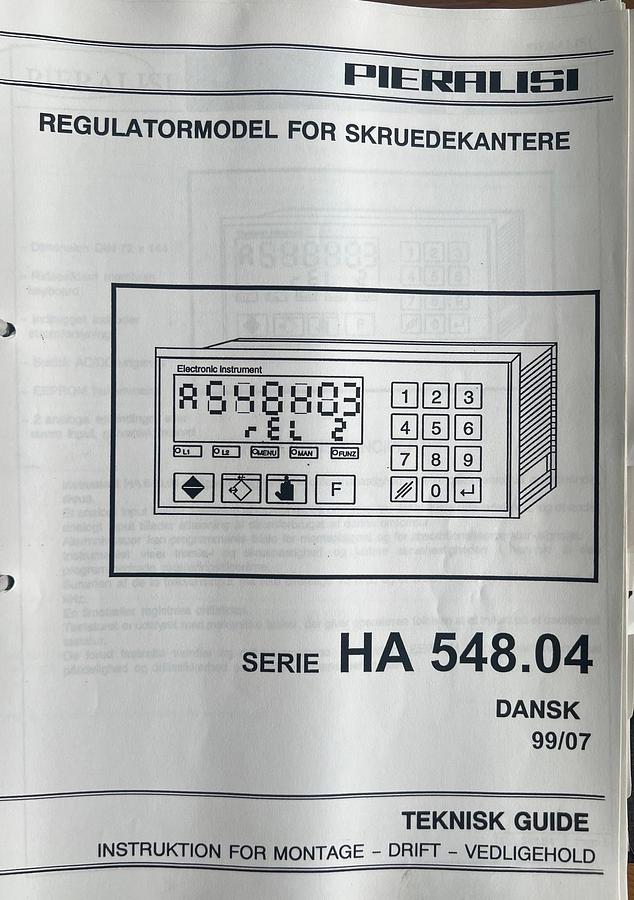

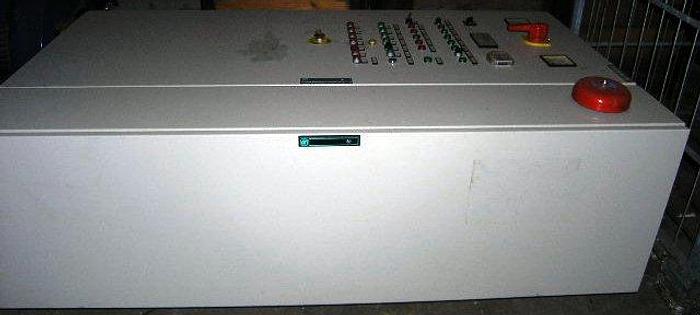

The steering panel also control instruments, feed pump, sludge conveyor for the dewatered sludge and flocculation mixer unit.

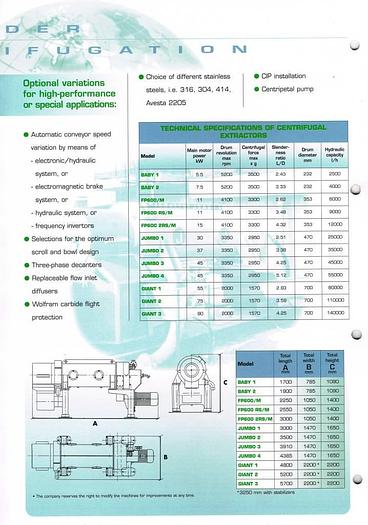

Bowl Diam. (mm): 470 L/D ratio: 4,89 Half cone angle: 8,0 D-solids: 260 L-cyl: 1530 L-cone: 768 Max rpm / G-force: 2700 / 1915
